AutoSys command). The box is a combination of jobs and a file watcher job. It is also possible to nest boxes (to. Command COMMAND Days of week RULE Run calendar. Sendevents to AutoSys for a variety of purposes, including starting or stopping AutoSys jobs, stopping the Event processor, and putting a job on hold. This command is also used to set AutoSys global variables or cancel a scheduled event.sendevent is normally used with “-E” & -J option.

Well guys , the previous post about AutoSys was more like a cheat-sheet to AutoSys commands . But now in this post I will discuss more detailed about AutoSys ……

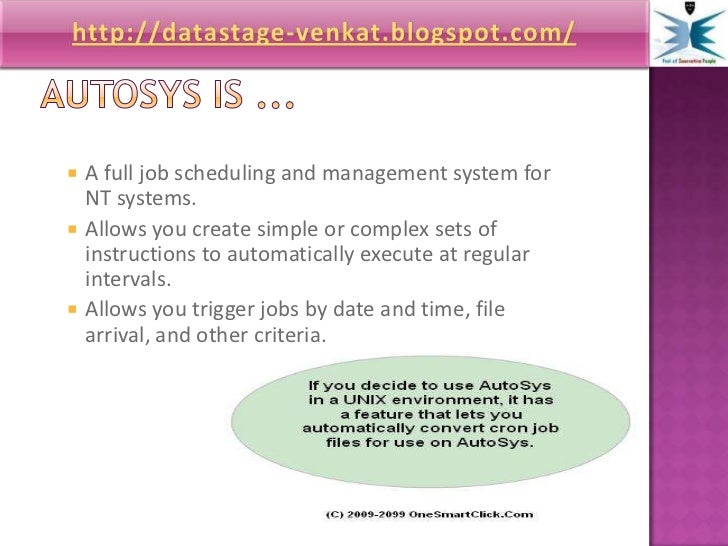

AutoSys is an automated job control system for scheduling, monitoring, and reporting purpose. These jobs can reside on any AutoSys-configured machine that is attached to a network.
An AutoSys job can be single command, executable, script, or Windows batch file. Each AutoSys job definition contains a variety of qualifying attributes, including the conditions specifying when and where a job should be run.

There are 2 methods to create AutoSys jobs

Using the AutoSys Graphical User Interface (GUI).

Using the AutoSys Job Information Language (JIL) through a command-line interface. Download txt file converter.

Job Types and Structure :

There are three types of jobs: command, file watcher, and box.
As their names implies, command jobs execute commands, box jobs are containers that hold other jobs (including other boxes), and file watcher jobs watch for the arrival of a specified file.
In the AutoSys environment, the box job (or box) is a container of other jobs. A box job can be used to organize and control process flow. The box itself performs no actions, although it can trigger other jobs to run. An important feature of this type of job is that boxes can be put inside of other boxes.

Some important rules to remember about boxes are

Jobs run only once per box execution.
Jobs in a box will start only if the box itself is running.
As long as any job in a box is running, the box remains in RUNNING state; the box cannot complete until all jobs have run.
By default, a box will return a status of SUCCESS only when all the jobs in the box have run and the status of all the jobs is “success”.
By default, a box will return a status of FAILURE only when all jobs in the box have run and the status of one or more of the jobs is “failure.”
Unless otherwise specified, a box will run indefinitely until it reaches a status of SUCCESS or FAILURE.
Changing the state of a box to INACTIVE (via the sendevent command) changes the state of all the jobs in the box to INACTIVE.

Job States and Status :
AutoSys keeps track of the current state, or status, of every job. The value of a job’s status is used to determine when to start other jobs that are dependent on the job. The job status is displayed in the job report generated by the autorep command, and in the job report you can view in the Job Activity Console
Following are the status of Autosys jobs:

INACTIVE : The job has not yet been processed. Either the job has never been run, or its status was intentionally altered to “turn off” its previous completion status
ACTIVATED :The top-level box that this job is in is now in the RUNNING state, but the job itself has not started yet.
STARTING : The event processor has initiated the start job procedure with the Remote Agent.
RUNNING : The job is running. If the job is a box job, this value simply means that the jobs within the box may be started (other conditions permitting). If it is a command or file watcher job, the value means that the process is actually running on the remote machine.
SUCCESS : The job exited with an exit code equal to or less than the “maximum exit code for success.” By default, only the exit code “0” is interpreted as “success.” If the job is a box job, this value means that all the jobs within the box have finished with the status SUCCESS (the default), or the “Exit Condition for Box Success” evaluated to true
FAILURE : The job exited with an exit code greater than the “maximum exit code for success.” By default, any number greater than zero is interpreted as “failure.” AutoSys issues an alarm if a job fails
TERMINATED : The job terminated while in the RUNNING state. A job can be terminated if a user sends a KILLJOB event or if it was defined to terminate if the box it is in failed. If the job itself fails, it has a FAILURE status, not a TERMINATED status. A job may also be terminated if it has exceeded the maximum run time (term_run_time attribute, if one was specified for the job), or if it was killed from the command line through a UNIX kill command. AutoSys issues an alarm if a job is terminated.
RESTART : The job was unable to start due to hardware or application problems, and has been scheduled to restart.
QUE_WAIT : The job can logically run (that is, all the starting conditions have been met), but there are not enough machine resources available.
ON_HOLD : This job is on hold and will not be run until it receives the JOB_OFF_HOLD event.
ON_ICE : This job is removed from all conditions and logic, but is still defined to AutoSys. Operationally, this condition is like deactivating the job. It will remain on ice until it receives the JOB_OFF_ICE event.

The difference between “on hold” and “on ice” is that when an “on hold” job is taken off hold, if its starting conditions are already satisfied, it will be scheduled to run, and it will run. On the other hand, if an “on ice” job is taken “off ice,” it will not start, even if its starting conditions are already satisfied. This job will not run until its starting conditions reoccur.
The other major distinction is that jobs downstream from the job that is “on ice” will run as though the job succeeded. Whereas, all dependent jobs do not run when a job is on “on hold”—nothing downstream from this job will run.

Starting Parameters :
AutoSys determines whether to start or not to start a job based on the evaluation of the starting conditions (or starting parameters) defined for the job. These conditions can be one or more of the following:

1. Date and time scheduling parameters are met (it is or has passed the specified date and time).
2. Starting Conditions specified in the job definition evaluate to true.
3. For jobs in a box, the box must be in the RUNNING state.
4. The current status of the job is not ON_HOLD or ON_ICE.

When using JIL to create a job definition, you enter the jil command to display the JIL prompt.Runs the Job Information Language (JIL) processor to add, update, and delete AutoSys jobs, machines, monitors, and reports. Also used to insert one-time job override definitions.

example :

Create Autosys Calendar

autorep -j <Test Box Name> -q
/* —————– <Test Box Name> —————– */

insert_job: <Test Box Name> job_type: b
owner: <Job Owner>
permission:
date_conditions: 1
run_calendar: <Set Calander Definition box and Insert Calander box Name>
start_times: “09:00”
condition: <s(Test Box Name1) & s(Test Box Name2)>
description: “Small Description Of Job Run Time”
alarm_if_fail: 0
timezone: <Location>

/* —————– <Test JobName_1> —————– */

Contactmixtapes | stream and download free. insert_job: <Test JobName_1> job_type: c
box_name: <Test Box Name>
command: <Job Command Line>
machine: <Machine Id/Name>
owner: <Job Owner>
permission:
description: <“Small Description Of Job”>
std_out_file: <Autosys Out Log Location on server>
std_err_file: <Autosys Error Log Location on server>
alarm_if_fail: 0
profile: <Ex: /home/Test/.bash_profile>

/* —————– <Test JobName_2> —————– */

insert_job: <Test JobName_2> job_type: c
box_name: <Test Box Name>
command: <Job Command Line>
machine: <Machine Id/Name>
owner: <Job Owner>
permission:
condition: s(<Test_JobName_1>)
description: <“Small Description Of Job”>
std_out_file: <Autosys Out Log Location on server>
std_err_file: <Autosys Error Log Location on server>
alarm_if_fail: 0
profile: <Ex: /home/Test/.bash_profile>

Note : job type will define the type of job either it’s a box or command . Similarly condition will define the prerequisite of the job whether to run or not .

AutoSys Commands :

Syntax
autorep {-J job_name -M machine_name -G global_name} [-s -d -q -o over_num] [-r run_num]autorep -J (job name here)

This will display a list of jobs with complete details with box/jobname, last/latest run date & time, status, exit code, etc.
Viewing JIL code for any Autosys job

autorep -J (job name here) -q

To obtain the underlying JIL (Job Interaction Language) source code for any Autosys job, run command:

To obtain the information of previous runs

autorep -J (job name here) -r (No of runs back) example : autorep -J (job name here) -r 1

Autosys Calendar Commands Tutorial

would generate a report for the job run one runs back

sendevents to AutoSys for a variety of purposes, including starting or stopping AutoSys jobs, stopping the Event processor, and putting a job on hold. This command is also used to set AutoSys global variables or cancel a scheduled event.sendevent is normally used with “-E” & -J option

-J job_name : Specifies the name of the job to which the specified event should be sent. This option is required for all events except STOP_DEMON, COMMENT, ALARM, or SET_GLOBAL

-E event :Specifies the event to be sent. This option is required. Any one of the following events may be specified:

STARTJOB
KILLJOB
DELETEJOB
FORCE_STARTJOB
JOB_ON_ICE
JOB_OFF_ICE
JOB_ON_HOLD
JOB_OFF_HOLD
CHANGE_STATUS
STOP_DEMON
CHANGE_PRIORITY
COMMENT
ALARM
SET_GLOBAL
SEND_SIGNAL
Following are the example of sendevent command frequently used.

To start or force start a job manually using sendevent :sendevent –E FORCE_STARTJOB -J “Job Name Here”

sendevent -E STARTJOB -J “Job Name Here”

To put jobs on OFF ICE or ON ICE :

sendevent -E OFF_ICE -J “Job Name Here”

sendevent -E ON_ICE -J “Job Name Here”
